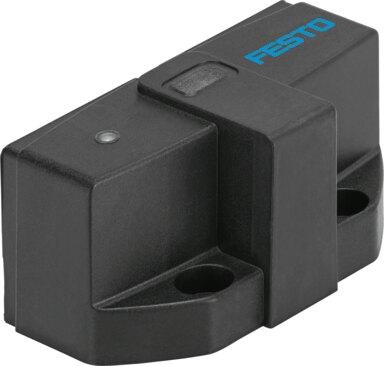

Reference imageConfirm configuration by manufacturer part number.
Festo
3568055
Limit switch box SRBG-C1-N-1-P-M12
The Festo part number 3568055 is a square industrial component utilizing an inductive measuring principle based on EN 60947-5-2 and VDI/VDE 3845 norms. It features a PNP switching output with an N.O. contact function, operating within a DC voltage range of 10 V to 30 V and supporting a maximum switching frequency of 500 Hz across an ambient temperature range of -25 °C to 70 °C. Certifications include RCM compliance and c UL us (OL) listings, alongside CE, UKCA, and KC-EMV markings and RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3568055
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3568055.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- EN 60947-5-2 | VDI/VDE 3845
- Certication
- RCM compliance mark | c UL us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Measuring principle
- Inductive
- Ambient temperature
- -25 °C...70 °C
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency
- 500 Hz
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Residual current
- 0 mA...0.5 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 25 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection, input
- M12x1
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Round
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Type of mounting
- Screwed
- Mounting position
- Any
- Product weight
- 70 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3568055. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
