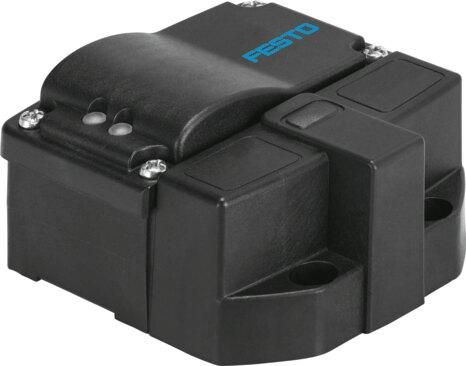

Reference imageConfirm configuration by manufacturer part number.
Festo
3568165
Limit switch box SRBG-C1-N-1-P-C2-C2
The Festo 3568165 is a square industrial component utilizing an inductive measuring principle based on EN 60947-5-2 and VDI/VDE 3845 norms. Featuring a PNP switching output with a normally open contact function, it operates within a 10 V to 30 V DC voltage range, delivers a maximum switching frequency of 500 Hz, and connects via a terminal strip. It carries RCM, c UL us (OL), and KC-EMV marks with CE and UKCA conformity for EMC and RoHS directives, while operating in ambient temperatures from -25 °C to 70 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3568165
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3568165.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- EN 60947-5-2 | VDI/VDE 3845
- Certication
- RCM compliance mark | c UL us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Note on materials
- RoHS compliant
- Measuring principle
- Inductive
- Ambient temperature
- -25 °C...70 °C
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency
- 500 Hz
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Residual current
- 0 mA...0.5 mA
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 25 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Round
- Electrical connection 1, connection technology
- Spring-loaded terminal
