Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

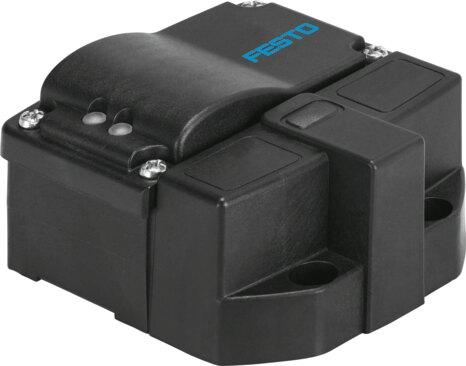

Reference imageConfirm configuration by manufacturer part number.
Festo
3568167
Limit switch box SRBG-C1-N-20N-ZC-C2-C2-EX5
The Festo 3568167 is a square industrial component built in accordance with EN 60947-5-6 and VDI/VDE 3845 standards, featuring RCM compliance and c UL us (OL) certification. It carries CE and UKCA markings per EU and UK directives for EMC, RoHS, and explosion protection, supporting ATEX and international EPL classifications for Zone 0, Zone 1, Zone 2, and Zone 20 explosive environments with an effective internal inductance of 100 µH and capacitance of 100 nF. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3568167
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3568167.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Square
- Based on norm
- EN 60947-5-6 | VDI/VDE 3845
- Certication
- RCM compliance mark | c UL us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion prevention and protection
- Zone 0 (ATEX) | Zone 0 (CN) | Zone 0 (UKEX) | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 20 (CN) | Zone 20 (UKEX)
- ATEX category gas
- II 1G
- Type of ignition protection for gas
- Ex ia IIC T6...T1 Ga
- Type of (ignition) protection for dust
- Ex ia IIIC T200 135°C Da
- Explosion protection certication outside the EU
- EPL Da (CN) | EPL Da (GB) | EPL Ga (CN) | EPL Ga (GB)
- Explosive ambient temperature
- See ATEX certicate | See IECEx certicate
- Effective internal inductance Li
- 100 µH
- Effective internal capacitance Ci
- 100 nF
- Max. input parameter of intrinsically safe circuit
- See IECEx certicate
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3568167. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
