Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

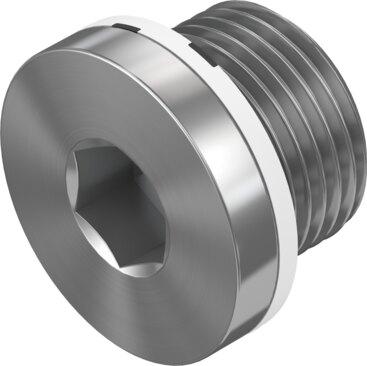

Reference imageConfirm configuration by manufacturer part number.
Festo
3570
Blanking plug B-3/8
The Festo part number 3570 is a galvanized steel blanking plug featuring an external thread G3/8 pneumatic connection 1 and an internal hexagon AF 8 mounting type, supplied in a pack size of 10 with a product weight of 23 g each. This component conforms to DIN 908, meets VDMA24364-B1/B2-L LABS (PWIS) conformity, utilizes PA and TPE-U(PUR) O-ring materials, and is RoHS compliant with a nominal tightening torque of 12.5 Nm subject to a ±20% tolerance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Pack size
- 10
- Conforms to standard
- DIN 908
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Nominal tightening torque
- 12.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 23 g
- Type of mounting
- Internal hexagon, AF 8
- Pneumatic connection 1
- External thread G3/8
- Note on materials
- RoHS compliant
- Blanking plug material
- Galvanized steel
- O-ring material
- PA | TPE-U(PUR)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3570. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
