3579461

Name: Festo 3579461 Connecting cable NEBV-A1W3-K-0.3-N-M12W3
Brand: Festo

Connecting cable NEBV-A1W3-K-0.3-N-M12W3

Engineered by Festo, part number 3579461 is an industrial component weighing 60 g with a c CSA us (OL) certification and a DC operating voltage range of 0 V to 110 V. The field device side features a square, 4-pin, 4-wire angled socket based on EN 175301-803 connection diagram form A, mounted via an M3 central screw on an air solenoid valve without a label holder. The control side utilizes an angled, round, 5-pin M12x1 A-coded plug with 3 occupied wires and a screw-type lock featuring an AF 13 hexagon. Submit your exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3579461
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3579461.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Cable designation: Without label holder
Product weight: 60 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

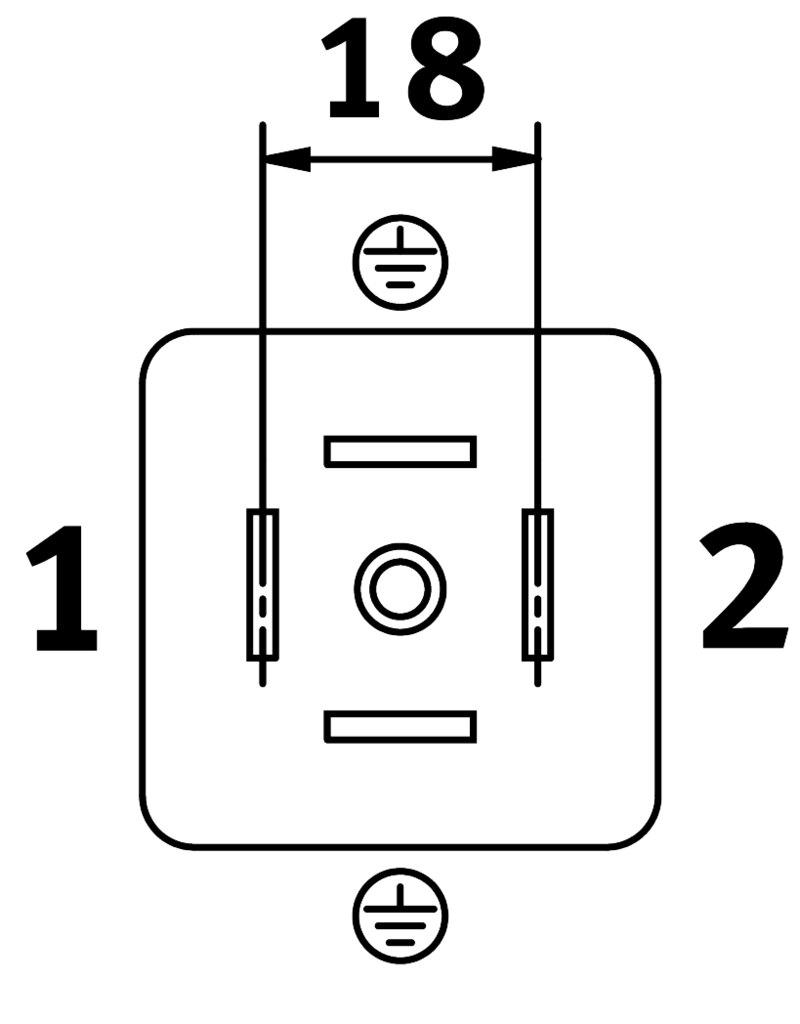

Electrical connection 1, connection technology: Connection diagram form A based on EN 175301-803
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Angled
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 3
Electrical connection 2, type of mounting: Screw-type lock with hexagon, AF 13
DC operating voltage range: 0 V...110 V
Nominal operating voltage DC: 110 V
Operating voltage range AC: 0 V...110 V
Nominal operating voltage AC: 110 V
Current rating at 40° C: 1 A
Surge resistance: 1.5 kV
Protective earth connection: Available
Cable length: 0.3 m
Cable characteristic: Standard

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3579461. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
