Name: Festo 3579464 Connecting cable NEBV-B2W3-K-0.6-N-M12W3
Brand: Festo

Connecting cable NEBV-B2W3-K-0.6-N-M12W3

This Festo industrial component, part number 3579464, weighs 100 g and features c CSA us (OL) certification for electrical use within a 0 V to 110 V DC operating voltage range. Connection 1 utilizes an angled square socket with 3 occupied pins in a form B industrial standard layout, designed for mounting on an air solenoid valve via an M3 central screw without a label holder. Connection 2 provides an angled round M12x1 A-coded plug featuring 3 occupied pins secured by an AF 13 hexagon screw-type lock. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3579464
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3579464.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Cable designation: Without label holder
Product weight: 100 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

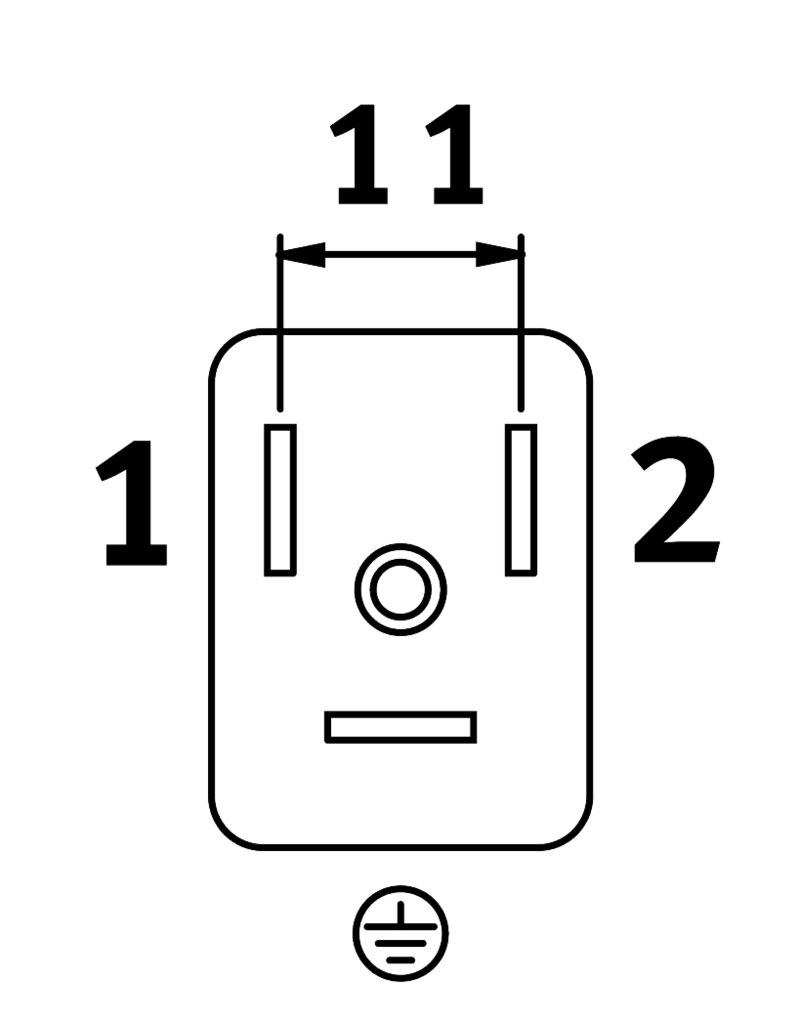

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Angled
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 3
Electrical connection 2, type of mounting: Screw-type lock with hexagon, AF 13
DC operating voltage range: 0 V...110 V
Nominal operating voltage DC: 110 V
Operating voltage range AC: 0 V...110 V
Nominal operating voltage AC: 110 V
Current rating at 40° C: 1 A
Surge resistance: 1.5 kV
Protective earth connection: Available
Cable length: 0.6 m
Cable characteristic: Standard
