Name: Festo 3579468 Connecting cable NEBV-B2W3-K-0.6-N-LE3
Brand: Festo

Connecting cable NEBV-B2W3-K-0.6-N-LE3

The Festo 3579468 is an industrial component weighing 80 g with c CSA us (OL) certification and no label holder on the cable designation. Electrical connection 1 on the field device side features an angled socket design with 3 pins and wires, utilizing an 11 mm industrial standard form B connection diagram mounted via an M3 central screw on an air solenoid valve. Electrical connection 2 on the control side consists of 3 occupied pins and wires terminating in an open-ended cable, supporting a DC and AC operating voltage range of 0 V to 230 V with a nominal operating voltage of 230 V. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3579468
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3579468.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Cable designation: Without label holder
Product weight: 80 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

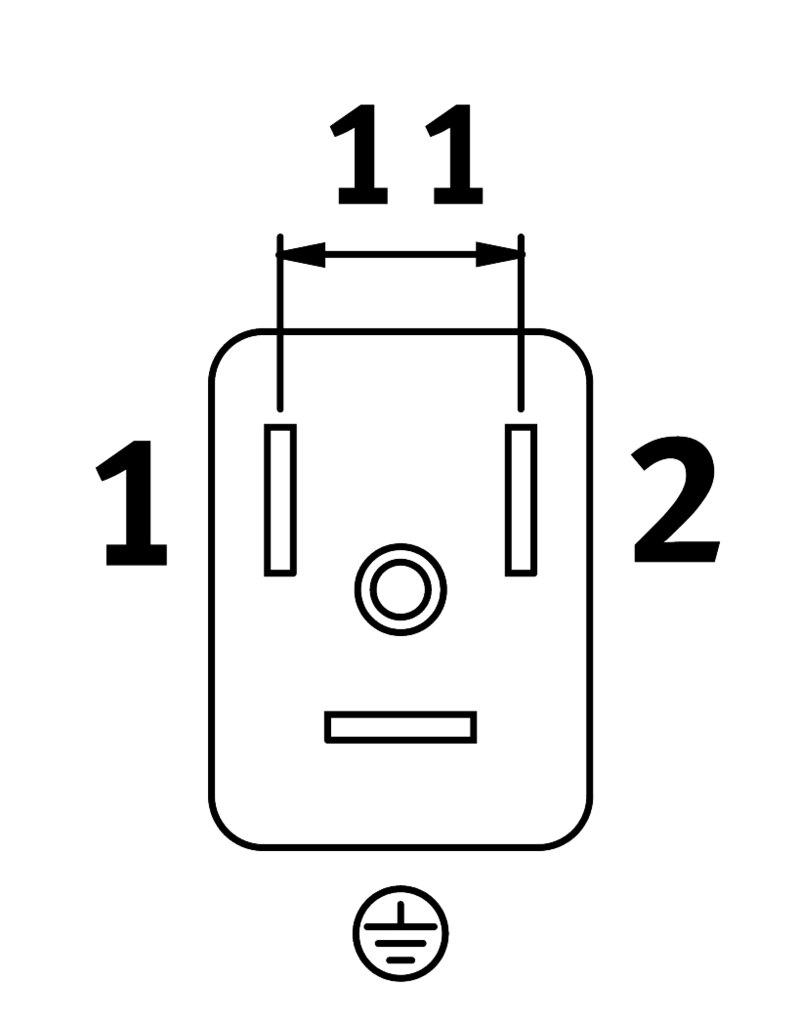

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 0 V...230 V
Nominal operating voltage DC: 230 V
Operating voltage range AC: 0 V...230 V
Nominal operating voltage AC: 230 V
Current rating at 40° C: 10 A
Surge resistance: 4 kV
Protective earth connection: Available
Cable length: 0.6 m
Cable characteristic: Standard
Connector cable test conditions: Test conditions on request
Cable diameter: 5.9 mm
Cable diameter tolerance: ± 0.3 mm
