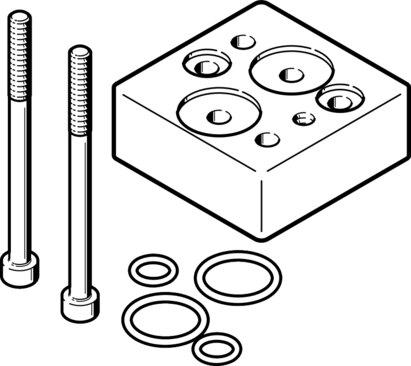

Name: Festo 3581412 Mounting plate VAME-S7-P-N-V14-A
Brand: Festo

Mounting plate VAME-S7-P-N-V14-A

The Festo 3581412 industrial component operates at pressures from 0 MPa to 1 MPa (0 bar to 10 bar, 0 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [-:-:-] in any mounting position. Featuring an ematal-coated aluminum plate, NBR seals, and a corrosion resistance class (CRC) of 4 for particularly high corrosion stress, this unit holds IP65 protection and VDMA24364 Zone III LABS conformity while supporting ATEX explosion prevention and protection for Zones 1, 2, 21, and 22. It includes a through-hole mounting type, pneumatic connection 1 via M5 or NAMUR connection pattern, pneumatic connection 2 via Flange 1/4 or NAMUR connection pattern, pneumatic connection 3 via G1/4, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3581412
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3581412.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Type of mounting: With through-hole
Pneumatic connection 1: M5 | NAMUR connection pattern
Pneumatic connection 2: Flange 1/4 | NAMUR connection pattern
Pneumatic connection 3: G1/4
Note on materials: RoHS compliant
Seals material: NBR
Plate material: Aluminum, ematal coated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3581412. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
