Festo
35984

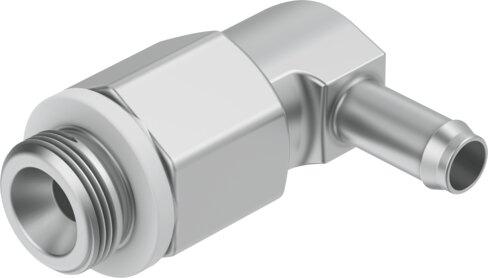

Barbed elbow fitting LCNH-M5-PK-4
The Festo part number 35984 is an industrial component featuring an M5 external thread for pneumatic connection 1 and a connection for 6 mm outside diameter pneumatic tubing for pneumatic connection 2. This assembly operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of -0.95 bar to 10 bar and an ambient temperature range of 0 °C to 60 °C, with oil lubrication operation possible and required for further use. Constructed with a steel and die-cast zinc housing, a sealing ring type of seal on the screwed plug, and RoHS-compliant materials, the unit provides a nominal width of 2.9 mm, corrosion resistance class 2 for moderate corrosion stress, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 35984
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 35984.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.9 mm
- Type of seal on screwed plug
- Sealing ring
- Operating pressure for entire temperature range
- -0.95 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...60 °C
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- Steel | Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 35984. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
