Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

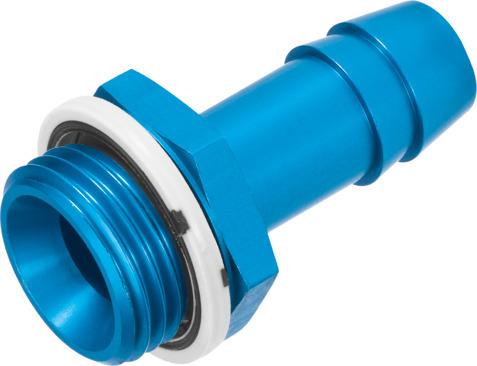

Reference imageConfirm configuration by manufacturer part number.
Festo
3611
Barb tubing fitting N-1/2-P-13
The Festo part number 3611 is a straight industrial component featuring a nominal width of 11 mm, an external thread G1/2 pneumatic connection 1, and a pneumatic connection 2 for tubing with an inside diameter of 13 mm. Constructed with an anodized aluminum housing and a sealing ring on the screwed plug, this unit operates across a pressure range of -0.95 bar to 16 bar and an ambient temperature range of -10 °C to 60 °C with compressed air. It exhibits a corrosion resistance class of 2, a maximum tightening torque of 18 Nm, and weighs 15.46 g with RoHS compliance and VDMA24364-B1/B2-L LABS conformity. Submit your exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3611
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3611.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 18 Nm
- Product weight
- 15.46 g
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing inside diameter 13 mm
- Note on materials
- RoHS compliant
- Housing material
- Anodized aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3611. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
