Festo
3612

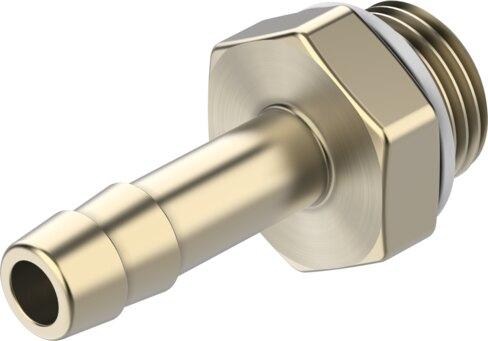

Barb tubing fitting N-3/4-P-13
Manufactured by Festo, this straight industrial component features an 11 mm nominal width and an anodized aluminum housing with a product weight of 32.27 g. It utilizes an external thread G3/4 for pneumatic connection 1 and accommodates a 13 mm inside diameter pneumatic tubing for connection 2, incorporating a sealing ring on the screwed plug. The unit operates within a pressure range of -0.95 bar to 16 bar and an ambient temperature range of -10 °C to 60 °C with compressed air as per ISO 8573-1:2010 [7:-:-], allowing oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3612
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3612.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 40 Nm
- Product weight
- 32.27 g
- Pneumatic connection 1
- External thread G3/4
- Pneumatic connection 2
- for pneumatic tubing inside diameter 13 mm
- Note on materials
- RoHS compliant
- Housing material
- Anodized aluminum
