Festo
36144

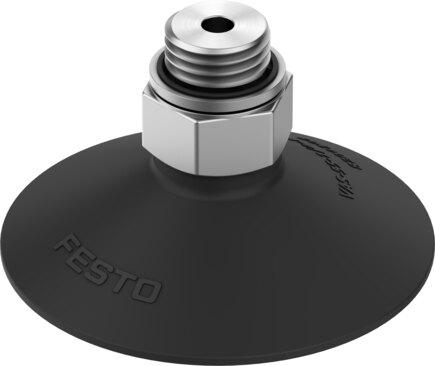

Vacuum suction cup VAS-55-1/4-NBR
The Festo 36144 is a round, flat industrial component featuring a 55 mm suction cup diameter, a 44 mm effective suction cup diameter, and a 3.5 mm height compensation with a 3.47 cm³ suction cup volume. Operating within a pressure range of -0.095 MPa to 0 MPa and a nominal operating pressure of -0.07 MPa, this black 32 g unit delivers a holding force of 106 N at nominal operating pressure using atmospheric air based on ISO 8573-1:2010 [7:-:-]. It is rated for an ambient temperature range of -20 °C to 80 °C, features a corrosion resistance class of 2 for moderate corrosion stress, and includes a G1/4 vacuum connection for mounting in any position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36144
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36144.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 3.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 55 mm
- Suction cup volume
- 3.47 cm³
- Effective suction cup diameter
- 44 mm
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -0.095 MPa...0 MPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -0.07 MPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 106 N
- Product weight
- 32 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- G1/4
- Color
- Black
- Shore hardness
- 70 +/-5
- Material of screwed plug
- Die-cast zinc
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36144. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
