36161

Name: Festo 36161 Barb tubing fitting N-3/8-P-13-MS
Brand: Festo

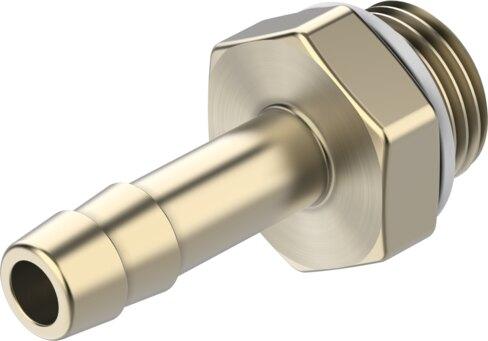

Barb tubing fitting N-3/8-P-13-MS

The Festo part number 36161 is a straight industrial component featuring a brass housing with an external thread G3/8 pneumatic connection 1 and a pneumatic connection 2 for tubing with a 13 mm inside diameter. It operates within a temperature range of -10 °C to 60 °C at an operating pressure of -0.95 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. This RoHS-compliant unit has a nominal width of 11 mm, a product weight of 31.97 g, a sealing ring on the screwed plug, and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 36161
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 36161.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 11 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: Straight design
Pack size: 1
Operating pressure for entire temperature range: -0.95 bar...16 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Max. tightening torque: 15 Nm
Product weight: 31.97 g
Pneumatic connection 1: External thread G3/8
Pneumatic connection 2: for pneumatic tubing inside diameter 13 mm
Note on materials: RoHS compliant
Housing material: Brass

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 36161. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
