Festo
3637955

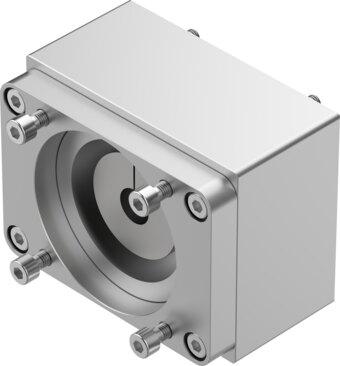

Axial kit EAMM-A-S95-100A-G2
The Festo 3637955 industrial component features an actuator interface code of S95, a motor input interface code of 100A, and a nominal length of 85.5 mm with a product weight of 2880 g. This RoHS-compliant part supports any mounting position, a maximum rotational speed of 5500 rpm, a transferable torque of 60 Nm, and a mass moment of inertia of 128 kgmm2, while meeting VDMA24364-B2-L LABS conformity. It operates within ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, relative air humidity from 0 to 95%, and provides an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3637955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3637955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 85.5 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 2880 g
- Interface code, actuator
- S95
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3637955. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
