Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

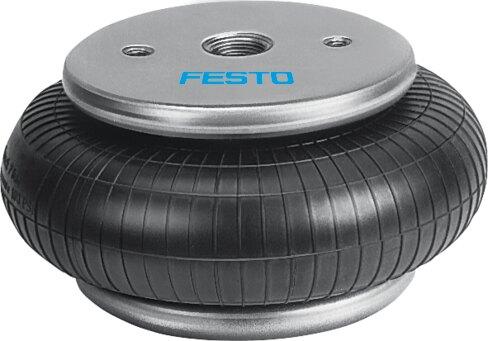

Reference imageConfirm configuration by manufacturer part number.
Festo
36486
Bellow cylinder EB-145-60
The Festo part number 36486 is a single-acting industrial component featuring a size 145 design, a 60 mm stroke, and a required installation diameter of 160 mm with an operating pressure range of 0 bar to 8 bar. This unit operates with compressed air as per ISO 8573-1:2010 [-:-:4], prohibits oil lubrication, and incorporates internal thread mounting with a G1/8 pneumatic connection. Accommodating an ambient temperature range of -40 °C to 70 °C, it provides a resetting force of 120 N, a maximum height when advanced of 110 mm, a minimum installation height of 50 mm, a maximum angle of inclination of 20 degrees, and a maximum offset of 10 mm at a product weight of 900 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36486
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36486.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 145
- Required installation Ø
- 160 mm
- Stroke
- 60 mm
- Max. height, advanced
- 110 mm
- Max. angle of inclination
- 20 deg
- Max. offset
- 10 mm
- Min. installation height
- 50 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 120 N
- Product weight
- 900 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36486. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
