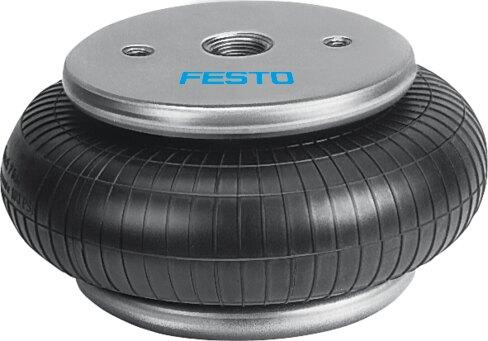

Reference imageConfirm configuration by manufacturer part number.
Festo
36487
Bellow cylinder EB-165-65
The Festo part number 36487 is a single-acting industrial component featuring a size 165 designation, a 65 mm stroke, and a required installation diameter of 180 mm. Designed for operation with compressed air as per ISO 8573-1:2010 [-:-:4] within an operating pressure range of 0 bar to 8 bar (0 psi to 116 psi), this unit functions across an ambient temperature range of -40 °C to 70 °C and incorporates internal thread mounting with a G1/4 pneumatic connection. The assembly yields a resetting force of 200 N, a product weight of 1200 g, a maximum advanced height of 115 mm, a minimum installation height of 51 mm, a maximum offset of 10 mm, and a maximum angle of inclination of 20 degrees with a CRC rating of 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 165
- Required installation Ø
- 180 mm
- Stroke
- 65 mm
- Max. height, advanced
- 115 mm
- Max. angle of inclination
- 20 deg
- Max. offset
- 10 mm
- Min. installation height
- 51 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 1200 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
