Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

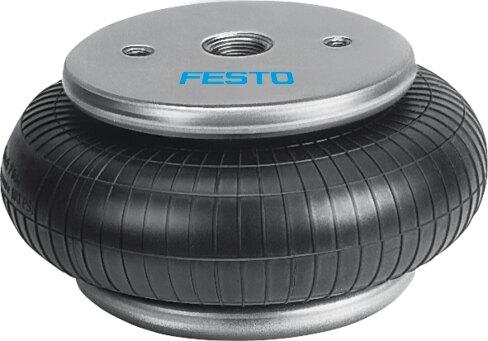

Reference imageConfirm configuration by manufacturer part number.
Festo
36488
Bellow cylinder EB-215-80
The Festo part number 36488 is a single-acting industrial component featuring a size 215 design with an 80 mm stroke and a 2000 g product weight. Operating at pressures from 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi) using compressed air conforming to ISO 8573-1:2010 [-:-:4], this unit functions without oil lubrication across an ambient temperature range of -40 °C to 70 °C. It requires a 230 mm installation diameter, a minimum installation height of 50 mm, and a maximum advanced height of 135 mm, while accommodating a maximum angle of inclination of 20 degrees and a maximum offset of 10 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 215
- Required installation Ø
- 230 mm
- Stroke
- 80 mm
- Max. height, advanced
- 135 mm
- Max. angle of inclination
- 20 deg
- Max. offset
- 10 mm
- Min. installation height
- 50 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 2000 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G3/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36488. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
