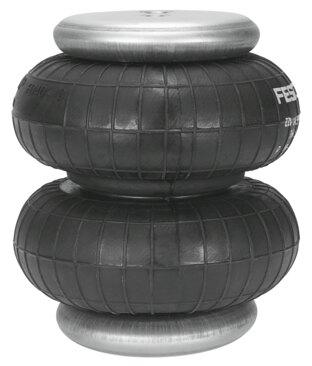

Reference imageConfirm configuration by manufacturer part number.
Festo
36490
Bellow cylinder EB-145-100
The Festo 36490 is a single-acting industrial component featuring a size of 145, a 100 mm stroke, and a G1/8 pneumatic connection operating at pressures up to 0.8 MPa (8 bar / 116 psi). Designed with internal thread mounting for any position, it requires a 160 mm installation diameter, accommodating an ambient temperature range of -40 °C to 70 °C with a 200 N resetting force. This RoHS-compliant unit weighs 1100 g, achieves CRC 2 moderate corrosion resistance, and utilizes unlubricated compressed air matching ISO 8573-1:2010 [-:-:4]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36490
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36490.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 145
- Required installation Ø
- 160 mm
- Stroke
- 100 mm
- Max. height, advanced
- 170 mm
- Max. angle of inclination
- 30 deg
- Max. offset
- 20 mm
- Min. installation height
- 70 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 1100 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36490. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
