Festo
36492

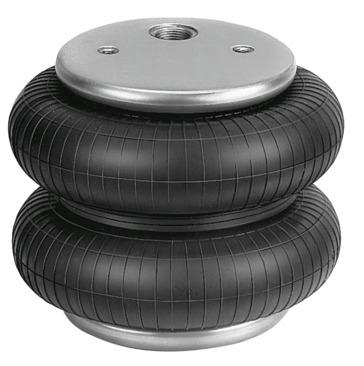

Bellow cylinder EB-215-155
The Festo part number 36492 is a size 215 single-acting industrial component operating with compressed air as per ISO 8573-1:2010 [-:-:4] across an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi). Featuring a stroke of 155 mm, a max height when advanced of 230 mm, a min installation height of 75 mm, and a required installation diameter of 230 mm, this unit supports any mounting position via internal thread with a G3/4 pneumatic connection. It provides a resetting force of 200 N, a product weight of 2300 g, a max angle of inclination of 30 degrees, a max offset of 20 mm, and a moderate corrosion resistance class (CRC) of 2 with VDMA24364-B1/B2-L LABS conformity and an ambient temperature range of -40 °C to 70 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36492
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36492.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 215
- Required installation Ø
- 230 mm
- Stroke
- 155 mm
- Max. height, advanced
- 230 mm
- Max. angle of inclination
- 30 deg
- Max. offset
- 20 mm
- Min. installation height
- 75 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 2300 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G3/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36492. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
