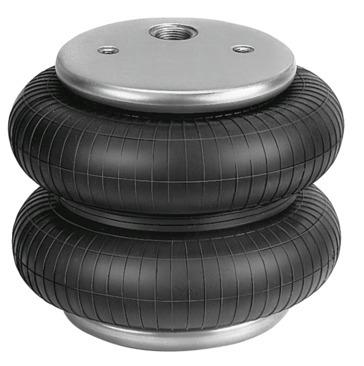

Reference imageConfirm configuration by manufacturer part number.
Festo
36493
Bellow cylinder EB-250-185
Engineered by Festo as a single-acting industrial component with a size 250 designation, part number 36493 operates with compressed air within a pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi) and an ambient temperature span of -40 °C to 70 °C. The unit requires a 265 mm installation diameter, a minimum installation height of 75 mm, and a max height of 275 mm when advanced, providing a 185 mm stroke, a resetting force of 200 N, and a maximum angle of inclination of 25 degrees with a 20 mm max offset. Weighing 3000 g, this model features internal thread mounting and a G3/4 pneumatic connection, exhibits a moderate corrosion resistance class (CRC 2), and operates without oil lubrication using compressed air compliant with ISO 8573-1:2010 [-:-:4]. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 36493
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 36493.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 250
- Required installation Ø
- 265 mm
- Stroke
- 185 mm
- Max. height, advanced
- 275 mm
- Max. angle of inclination
- 25 deg
- Max. offset
- 20 mm
- Min. installation height
- 75 mm
- Mounting position
- Any
- Mode of operation
- Single-acting
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...70 °C
- Resetting force
- 200 N
- Product weight
- 3000 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G3/4
- Note on materials
- RoHS compliant
- Bellows material
- NR/BR
- Housing material
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 36493. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
