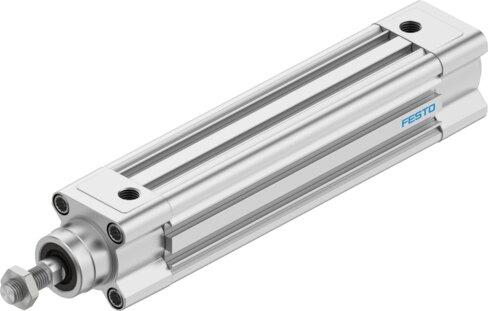

Reference imageConfirm configuration by manufacturer part number.
Festo
3659383
ISO cylinder DSBC-32-125-D3-PPSA-N3
The Festo part number 3659383 is a double-acting industrial component featuring a 32 mm piston diameter, a 125 mm stroke, and an external M10x1.25 piston rod thread conforming to ISO 15552. Designed with a profile barrel structure, self-adjusting pneumatic end-position cushioning, and position sensing via proximity switch, this unit operates within a pressure range of 0.08 MPa to 1.2 MPa and an ambient temperature range of -20 °C to 80 °C. It achieves a theoretical retracting force of 415 N at 6 bar while offering moderate corrosion resistance (CRC 2) and compatibility with compressed air meeting ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3659383
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3659383.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 125 mm
- Piston diameter
- 32 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.08 MPa...1.2 MPa | 0.8 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 J
- Cushioning length
- 17 mm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass
- 223 g
- Moving mass at 0 mm stroke
- 110 g
- Additional moving mass per 10 mm stroke
- 9 g
- Product weight
- 867 g
- Basic weight with 0 mm stroke
- 480 g
- Additional weight per 10 mm stroke
- 31 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
