Festo
3659941

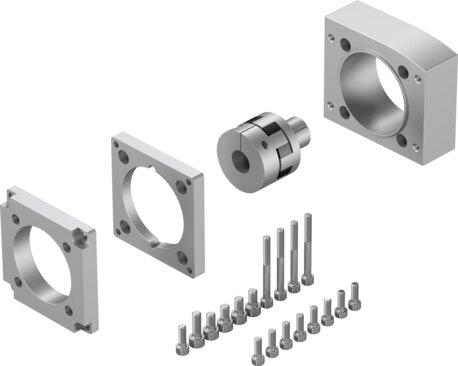

Axial kit EAMM-A-L95-120G-G2
The Festo 3659941 is an industrial component featuring an actuator interface code of L95 and a motor-in interface code of 120G, with a transferable torque of 150 Nm and a maximum rotational speed of 4500 rpm. This part has a nominal length of 81 mm, a mass moment of inertia of 374 kgmm², a product weight of 2935 g, and VDMA24364-B2-L LABS conformity with RoHS-compliant materials. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature of -25 °C to 60 °C, relative air humidity from 0 to 95%, an IP40 degree of protection, and supports mounting in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3659941
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3659941.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 81 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 374 kgmm²
- Transferable torque
- 150 Nm
- Product weight
- 2935 g
- Interface code, actuator
- L95
- Interface code, motor in
- 120G
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3659941. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
