3670

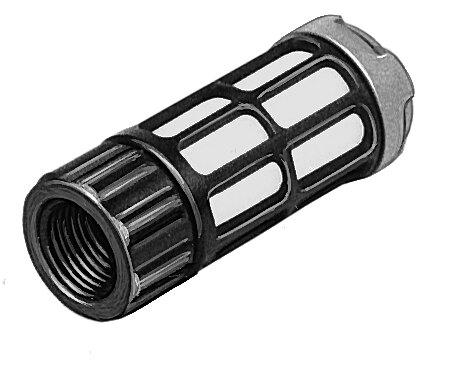

Name: Festo 3670 Pneumatic muffler U-1/8-I
Brand: Festo

Pneumatic muffler U-1/8-I

The Festo part number 3670 is an industrial component featuring a G1/8 pneumatic connection, any mounting position, and an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar). It delivers a flow rate of 2050 l/min with respect to atmosphere while operating within an ambient temperature range of -10 °C to 70 °C and producing a noise level of 76.5 dB(A). Designed for compressed air operating medium compliant with ISO 8573-1:2010 [7:-:-], this RoHS-compliant unit weighs 3.6 g, incorporates a protective grounding cushioning insert, and supports lubricated operation alongside VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3670
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3670.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Flow rate with respect to atmosphere: 2050 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Noise level: 76.5 dB(A)
Ambient temperature: -10 °C...70 °C
Product weight: 3.6 g
Pneumatic connection: G1/8
Cushioning insert material: Protective grounding
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3670. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
