Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

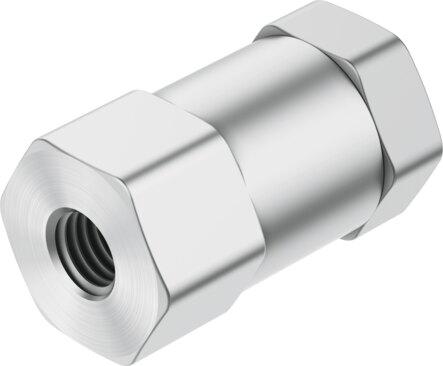

Reference imageConfirm configuration by manufacturer part number.
Festo
3671
Non return valve H-M5
The Festo part number 3671 is an industrial component featuring a non-return valve function with M5 pneumatic connections on both ports for in-line installation. Constructed with a brass housing and NBR seals, it supports a normal nominal flow rate of 140 l/min at an operating pressure range of 0.04 MPa to 0.8 MPa. The unit operates within ambient and medium temperatures from -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:-:-], allowing for oil-lubricated operation that is required for further use. This RoHS-compliant part adheres to VDMA24364-B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3671
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3671.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Non-return function
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M5
- Type of mounting
- In-line installation
- Normal nominal ow rate (normalized to DIN 1343)
- 140 l/min
- Operating pressure
- 0.04 MPa...0.8 MPa | 0.4 bar...8 bar
- Ambient temperature
- -10 °C...60 °C
- Housing material
- Brass
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Temperature of medium
- -10 °C...60 °C
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3671. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
