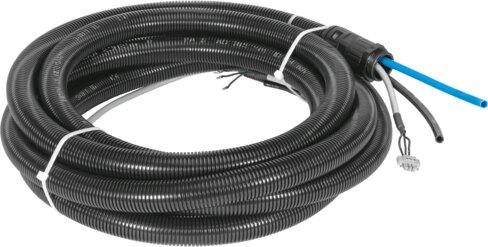

Name: Festo 3673475 Connecting cable NHSB-A1-0,6-BLG3-LE3-PU8-2XBB
Brand: Festo

Connecting cable NHSB-A1-0,6-BLG3-LE3-PU8-2XBB

The Festo part number 3673475 is an industrial component featuring a 0.6 m protective tube length, IP65, IP67, IP69K, and NEMA 4 degree of protection, and an operating voltage range of 0 V to 30 V DC. It accommodates compressed air as per ISO 8573-1:2010 [7:4:4] with a pneumatic connection for 8 mm outside diameter tubing and a 3-core open end to straight plug 3-pin electrical configuration. Built for an ambient temperature range of -20 °C to 60 °C and weather-protected exterior areas under class C1 based on IEC 60654-1, this 280 g RoHS-compliant assembly utilizes PA protective conduit and fitting materials. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3673475
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3673475.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protective tube length: 0.6 m
Mounting position: Any
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
DC operating voltage range: 0 V...30 V
LABS (PWIS) conformity: VDMA24364 Zone III
Relative air humidity: 5 - 100% | Condensating
Degree of protection: IP65 | IP67 | IP69K | NEMA 4
Ambient temperature: -20 °C...60 °C
Ambient temperature with exible cable installation: -5 °C...60 °C
Electrical connection 1: Straight plug, 3-pin
Electrical connection 2: Open end, 3-core
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Pneumatic connection: For pneumatic tubing outside diameter 8 mm
Min. cable bending radius: 100 mm
Cable design: 3 x 0.75 mm²
Product weight: 280 g
Note on materials: RoHS compliant
Protective conduit material: PA
Protective conduit tting material: PA
Material of cable sheath: PVC
Seals material: TPE
