Festo
3679771
Connecting cable NEBV-A1W3F-P-K-0.3-N-M12W3
The Festo 3679771 is an industrial component weighing 60 g that features a yellow LED for switching status indication and an integrated protective circuit without a label holder, certified by c CSA us (OL). On the field device side, electrical connection 1 utilizes a square, angled socket with form A connection technology based on EN 175301-803, comprising 4 pins and wires that are fully occupied and mounted onto an air solenoid valve via an M3 central screw. The control side features electrical connection 2 as a round, angled M12x1 A-coded plug per EN 61076-2-101 with 5 pins and wires, of which 3 are occupied. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3679771
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3679771.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- Switching status indication
- Yellow LED
- Additional functions
- Protective circuit
- Cable designation
- Without label holder
- Product weight
- 60 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled

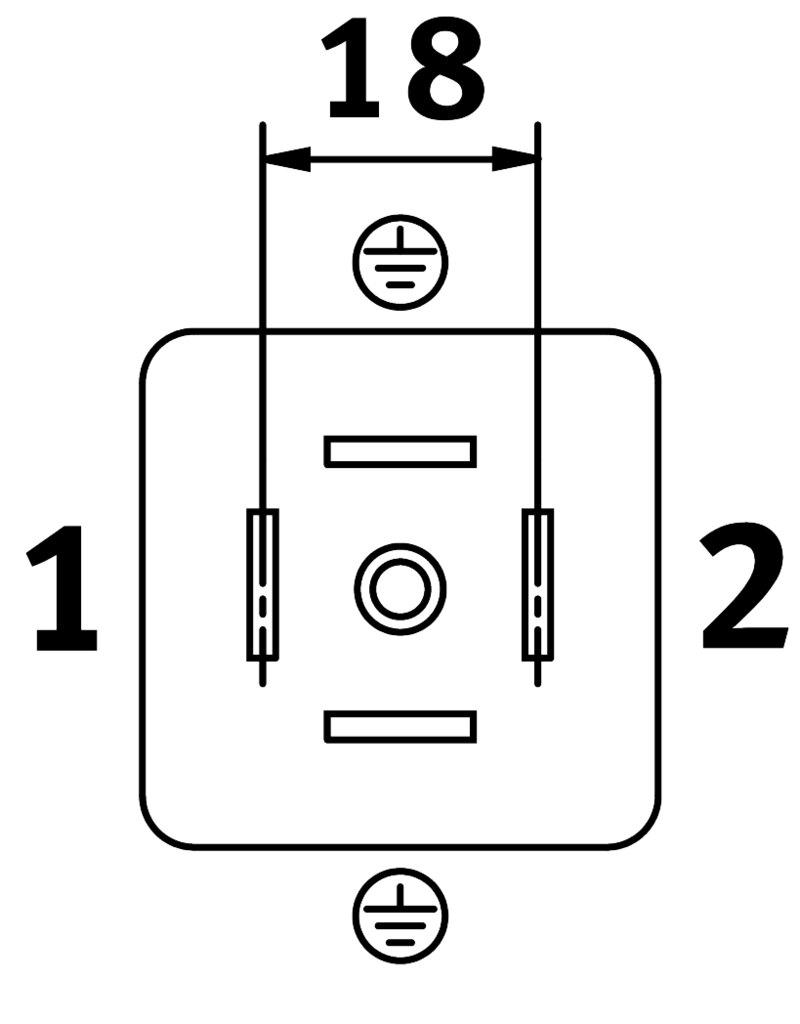

- Electrical connection 1, connection technology
- Connection diagram form A based on EN 175301-803
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- On air solenoid valve with M3 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon, AF 13
- DC operating voltage range
- 18 V...30 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 18 V...30 V
- Nominal operating voltage AC
- 24 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 0.8 kV
- Protective earth connection
- Available
