3679773

Name: Festo 3679773 Connecting cable NEBV-B2W3F-P-K-0.3-N-M12W3
Brand: Festo

Connecting cable NEBV-B2W3F-P-K-0.3-N-M12W3

The Festo 3679773 industrial component is a 60 g assembly featuring a yellow LED switching status indication and an integrated protective circuit without a label holder. It connects a field device side via an angled, 3-pin/3-wire square socket (connection diagram form B as per industrial standard, 11 mm) mounted with an M3 central screw to an air solenoid valve, to a control side utilizing an angled, 5-pin with 3 occupied wires M12x1 A-coded plug as per EN 61076-2-101, backed by c CSA us (OL) certification. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3679773
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3679773.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Switching status indication: Yellow LED
Additional functions: Protective circuit
Cable designation: Without label holder
Product weight: 60 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

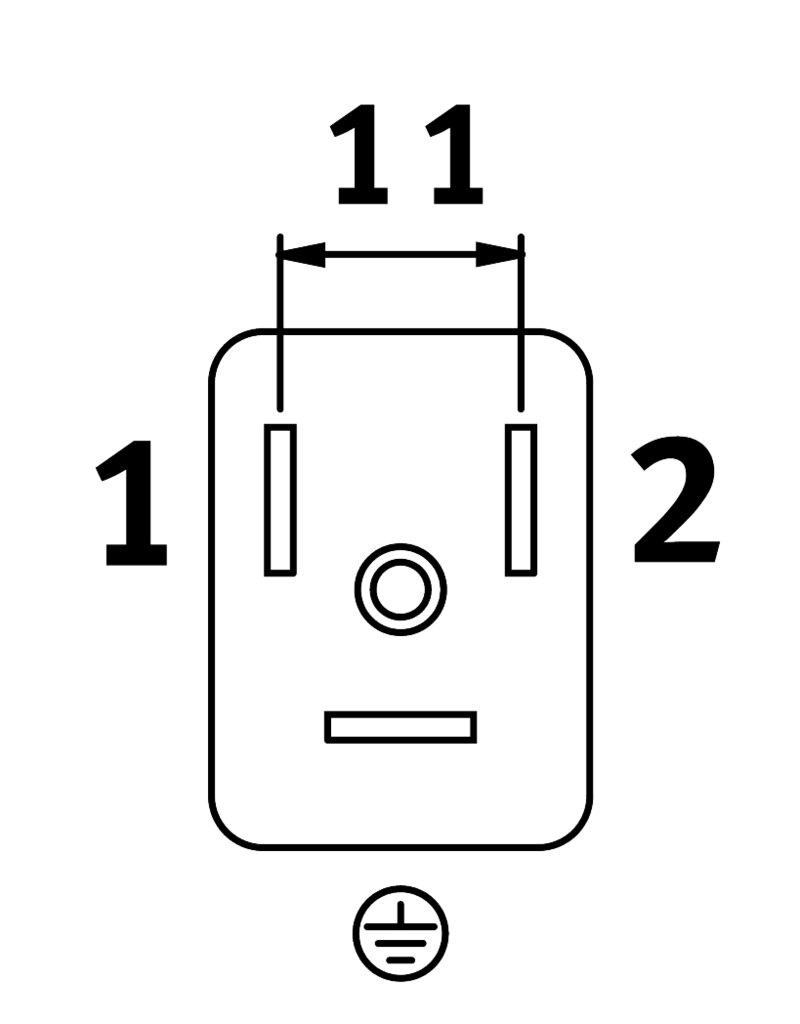

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Angled
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 3
Electrical connection 2, type of mounting: Screw-type lock with hexagon, AF 13
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 18 V...30 V
Nominal operating voltage AC: 24 V
Current rating at 40° C: 4 A
Surge resistance: 0.8 kV
Protective earth connection: Available

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3679773. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
