Name: Festo 3679776 Connecting cable NEBV-A1W3F-P-K-0.6-N-LE3
Brand: Festo

Connecting cable NEBV-A1W3F-P-K-0.6-N-LE3

The Festo part number 3679776 is an industrial component featuring a square socket on the field device side with a 4-pin angled connection technology based on EN 175301-803 form A, designed for mounting on an air solenoid valve via an M3 central screw. Operating within a DC voltage range of 18 V to 30 V with a nominal voltage of 24 V DC, it includes a yellow LED switching status indication, a protective circuit, and an open-end control side cable with 3 occupied pins out of 3. This 80 g component carries c CSA us (OL) certification and features a cable designation without a label holder. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3679776
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3679776.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Switching status indication: Yellow LED
Additional functions: Protective circuit
Cable designation: Without label holder
Product weight: 80 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

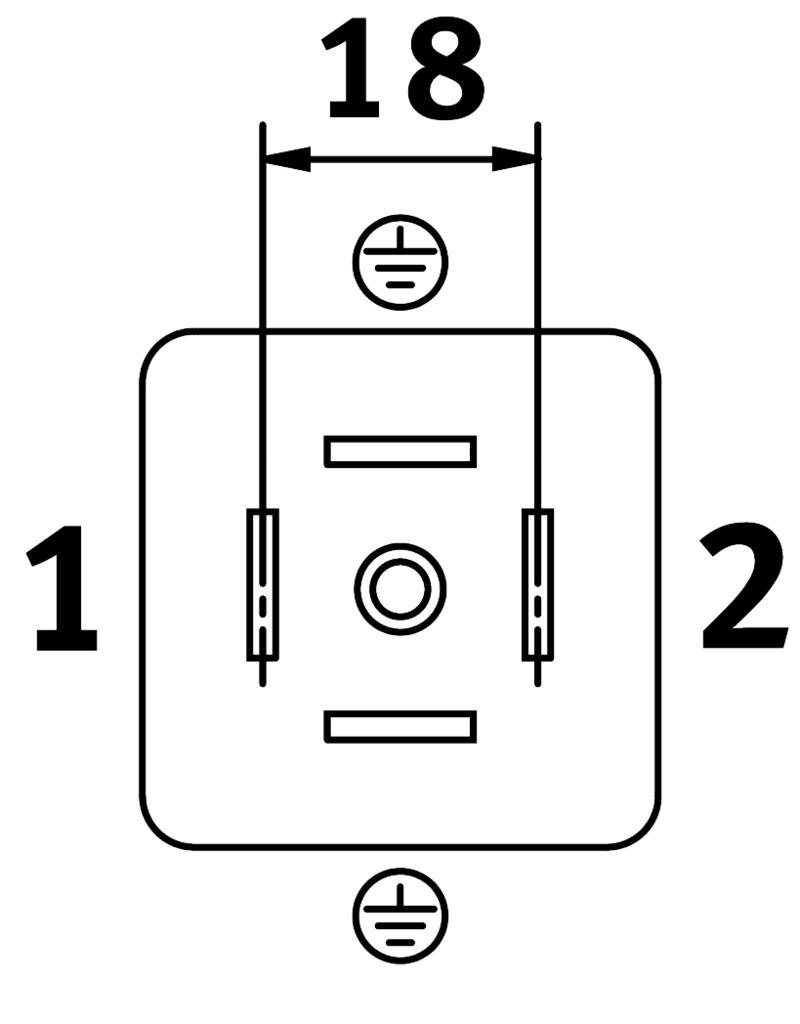

Electrical connection 1, connection technology: Connection diagram form A based on EN 175301-803
Electrical connection 1, number of pins/wires: 4
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 18 V...30 V
Nominal operating voltage AC: 24 V
Current rating at 40° C: 4 A
Surge resistance: 0.8 kV
Protective earth connection: Available
Cable length: 0.6 m
Cable characteristic: Standard
Connector cable test conditions: Test conditions on request
