3679778

Name: Festo 3679778 Connecting cable NEBV-B2W3F-P-K-0.6-N-LE3
Brand: Festo

Connecting cable NEBV-B2W3F-P-K-0.6-N-LE3

This Festo industrial component, part number 3679778, features an angled socket connection of form B per industrial standard (11 mm) with 3 pins and an M3 central screw for mounting on an air solenoid valve. It includes a protective circuit, a yellow LED for switching status indication, and an open-ended 3-wire cable on the control side, operating within a DC voltage range of 18 V to 30 V at a nominal 24 V DC. The unit weighs 80 g and carries c CSA us (OL) certification without a label holder on the cable designation. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 3679778
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 3679778.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
Switching status indication: Yellow LED
Additional functions: Protective circuit
Cable designation: Without label holder
Product weight: 80 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

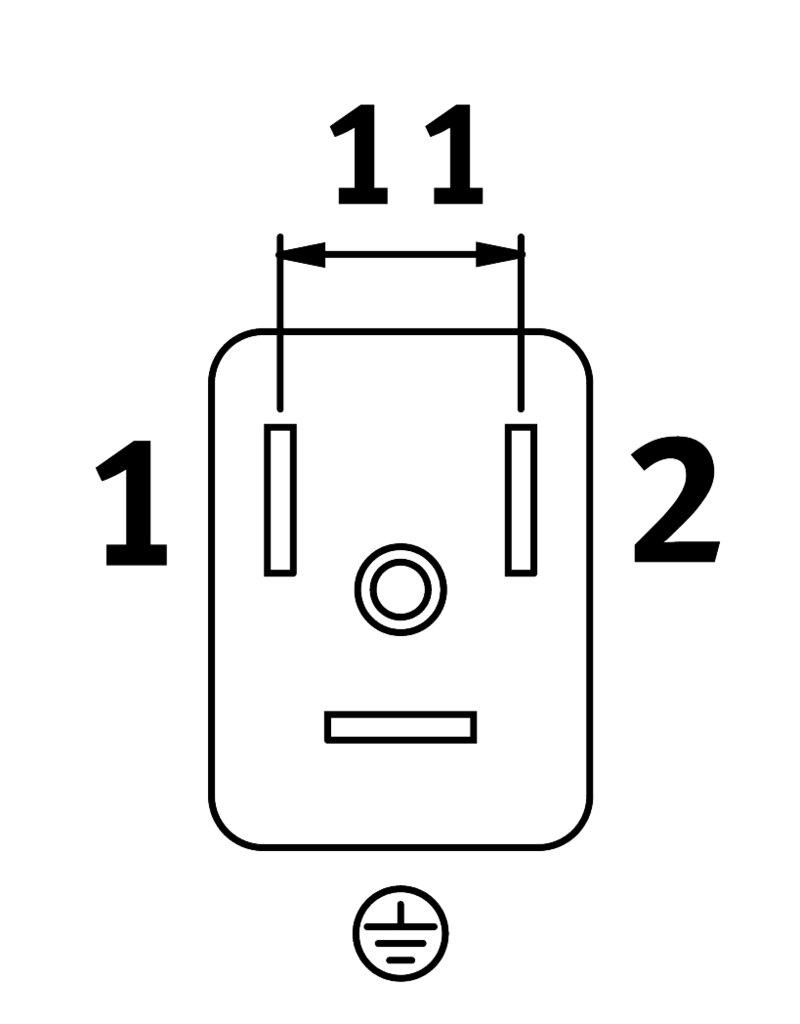

Electrical connection 1, connection technology: Connection diagram form B as per industrial standard, 11 mm
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: On air solenoid valve with M3 central screw
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 18 V...30 V
Nominal operating voltage DC: 24 V
Operating voltage range AC: 18 V...30 V
Nominal operating voltage AC: 24 V
Current rating at 40° C: 4 A
Surge resistance: 0.8 kV
Protective earth connection: Available
Cable length: 0.6 m
Cable characteristic: Standard
Connector cable test conditions: Test conditions on request

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 3679778. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
