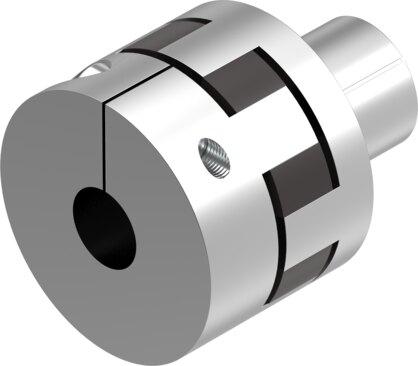

Reference imageConfirm configuration by manufacturer part number.
Festo
3717812
Coupling EAMD-67-51-20-32X32-U
Engineered by Festo, part number 3717812 is an industrial component featuring a size 67 designation with a nominal length of 51 mm, a 20 mm diameter for holder 1, and a 32 mm diameter for holder 2. This RoHS-compliant unit weighs 744 g, offers a transferable torque of 120 Nm, accommodates a maximum rotational speed of 4500 rpm, and possesses a mass moment of inertia of 374 kgmm². It supports any mounting position, adheres to VDMA24364-B2-L LABS conformity, and operates within an ambient and storage temperature range of -25 °C to 60 °C alongside 0 to 95% relative air humidity. Submit your exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3717812
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3717812.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 20 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 51 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 374 kgmm²
- Transferable torque
- 120 Nm
- Product weight
- 744 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3717812. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
