Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
3717923

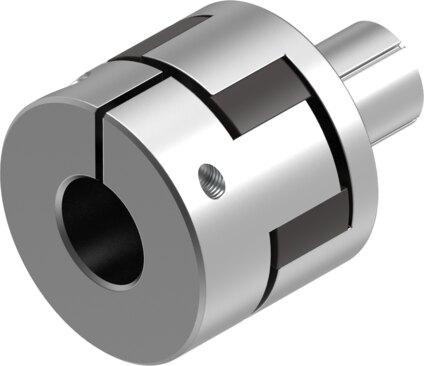

Coupling EAMD-25-22-9-10X12
The Festo part number 3717923 is an industrial component featuring a size 25 designation, a nominal length of 22 mm, and holder diameters of 9 mm and 10 mm respectively. This unit supports any mounting position, operates up to a maximum rotational speed of 8000 rpm, delivers a transferable torque of 9 Nm, and possesses a mass moment of inertia of 3.2 kgmm² with a total product weight of 43.2 g. It conforms to VDMA24364-B2-L LABS (PWIS) requirements, includes RoHS compliant materials, and functions within a relative air humidity range of 0 to 95% as well as storage and ambient temperatures spanning from -25 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3717923
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3717923.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 9 mm
- Diameter of holder 2
- 10 mm
- Size
- 25
- Nominal length
- 22 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 9 Nm
- Product weight
- 43.2 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3717923. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
