Festo
3720

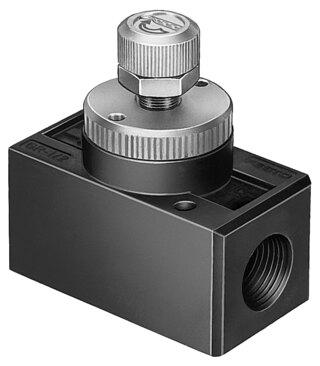

One-way flow control valve GR-1/2
The Festo 3720 is a one-way flow control valve featuring internal thread G1/2 pneumatic connections on both ports and a knurled screw adjusting element. Built with a die-cast zinc housing, brass adjusting screw, and galvanized steel nut, this component supports an operating pressure range of 0.01 MPa to 1 MPa and a standard nominal flow rate of 1620 l/min in the flow control direction. It delivers a nominal flow rate of 2760 l/min in the non-return direction while operating within an ambient and medium temperature range of -20 °C to 75 °C. Certified for ATEX Zone 1, 2, 21, and 22 environments, this RoHS-compliant unit weighs 517 g and accommodates compressed air media as per ISO 8573-1:2010 [7:-:-] with optional oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3720
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3720.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- One-way ow control function
- Pneumatic connection 1
- Internal thread G1/2
- Pneumatic connection 2
- Internal thread G1/2
- Adjusting element
- Knurled screw
- Type of mounting
- With through-hole
- Standard nominal ow rate in ow control direction
- 1620 l/min
- Standard nominal ow rate in non-return direction
- 2760 l/min
- Operating pressure
- 0.01 MPa...1 MPa | 0.1 bar...10 bar | 1.45 psi...145 psi
- Ambient temperature
- -20 °C...75 °C
- Housing material
- Die-cast zinc
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...75 °C
- Product weight
- 517 g
- Note on materials
- RoHS compliant
- Material of adjusting screw
- Brass
- Nut material
- Steel, galvanized
