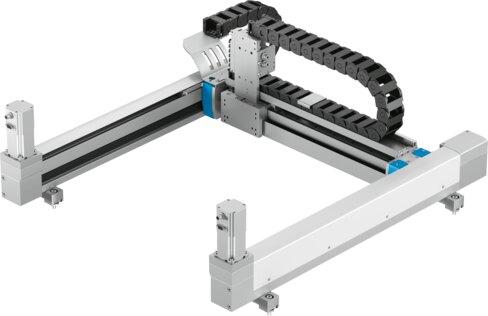

Reference imageConfirm configuration by manufacturer part number.
Festo
3741955
Planar surface gantry EXCM-40-
The Festo part number 3741955 is a size 40 planar surface gantry featuring a stepper motor, designed with a horizontal mounting position and an operating pressure of 8 bar. This component delivers an X-axis stroke from 200 mm to 2000 mm, a Y-axis stroke from 200 mm to 1000 mm, a repetition accuracy of ±0.1 mm, and a 100% duty cycle with a maximum horizontal speed of 1 m/s and acceleration of 5 m/s². Built to IP40 protection standards with a noise level of 65 dB(A), it complies with the EU machinery directive and UK instructions for machines while meeting VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3741955
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3741955.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Stroke of the X-axis
- 200 mm...2000 mm
- Stroke of the Y-axis
- 200 mm...1000 mm
- Mounting position
- Horizontal
- Structural design
- Planar surface gantry
- Motor type
- Stepper motor
- Operating pressure
- 8 bar
- Max. permissible acceleration, mechanical system only
- 20 m/s²
- Max. horizontal acceleration
- 5 m/s²
- Maximum permitted speed, mechanical system only
- 2 m/s
- Max. horizontal speed
- 1 m/s
- Repetition accuracy
- ±0.1 mm
- Duty cycle
- 100%
- CE marking (see declaration of conformity)
- as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for machines
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90% | Non-condensating
- Noise level
- 65 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 10 °C...50 °C
- Rated load with maximum dynamic response
- 4 kg
- Type of mounting
- With mounting kit | With adjusting kit | With slot nuts
- Note on materials
- RoHS compliant
