Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

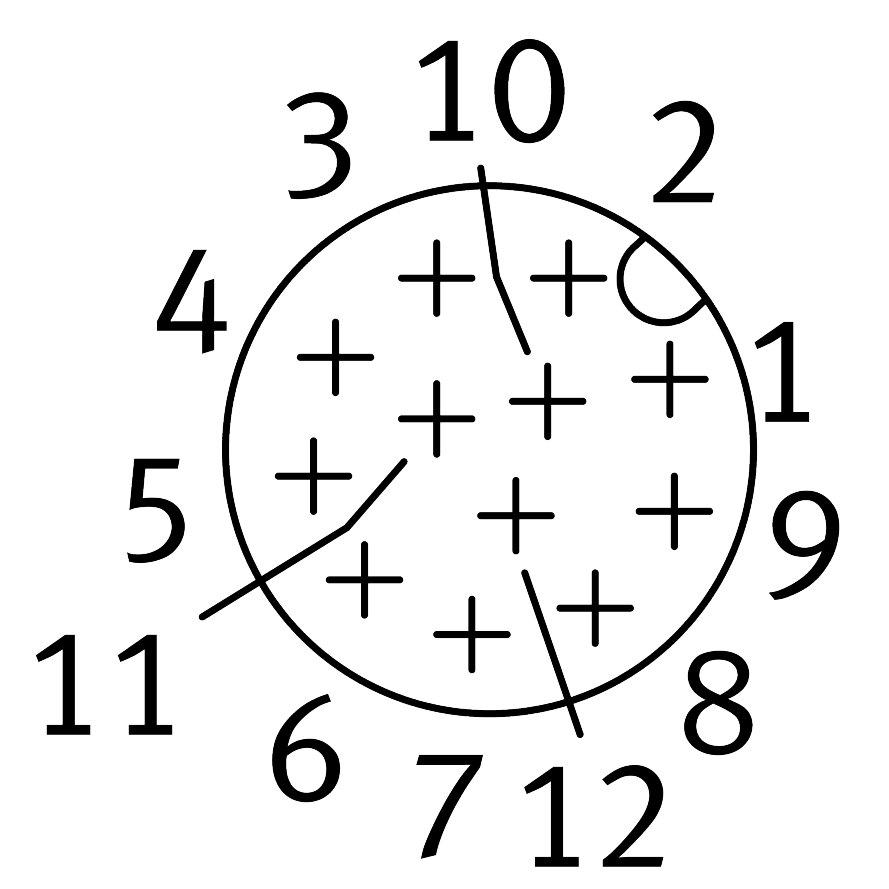

Reference imageConfirm configuration by manufacturer part number.
Festo
3947395
Connecting cable NEBS-SM12G12-E-5-N-LE12
The Festo part number 3947395 is an industrial component featuring a straight round M12x1 A-coded plug on the field device side with 12 occupied pins and a screw-type lock with hexagon, AF 13, conforming to standard EN 61076-2-101. The control side utilizes an open-end cable with 12 occupied wires, supporting a DC and AC operating voltage range of 0 V to 30 V, a current rating of 1.5 A at 40° C, a surge resistance of 0.5 kV, and a contact durability of 100. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3947395
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3947395.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Cable designation
- With accessories
- Contact durability
- 100
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 12
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon, AF 13
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 12
- Electrical connection 2, occupied pins/wires
- 12
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 1.5 A
- Surge resistance
- 0.5 kV
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 32 mm
- Bending radius, exible cable installation
- 65 mm
- Cable diameter
- 6.5 mm
- Cable design
- 12 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP67
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 3947395. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
