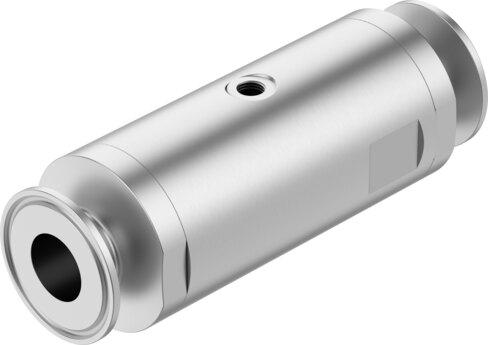

Reference imageConfirm configuration by manufacturer part number.
Festo
3968927
Pinch valve VZQA-C-M22U-25-S12S12-V4V4S1-4
The Festo 3968927 is a pneumatically operated, soft-sealing pinch valve featuring a 2/2-way monostable open function and an in-line installation design with ASME BPE type B clamp fittings. Engineered with a nominal width DN of 25 and a reversible flow direction, it operates at a medium pressure of 0 MPa to 0.4 MPa and an operating pressure of 0.1 MPa to 0.65 MPa, utilizing rebound resilience for the reset method. This externally controlled industrial component supports any mounting position and has been tested for vacuum use up to -0.09 MPa at room temperature. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3968927
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3968927.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Clamp according to ASME BPE type B
- Nominal width DN
- 25
- Valve function
- 2/2-way, monostable, open
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 0.1 MPa...0.65 MPa | 1 bar...6.5 bar | 14.5 psi...94.25 psi
- Nominal pressure of tting PN
- 10
- Differential pressure
- 0.3 MPa | 3 bar | 43.5 psi
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 0.78 MPa | 7.8 bar | 113.1 psi
- Reset method
- Rebound resilience
- Type of control
- Externally controlled
