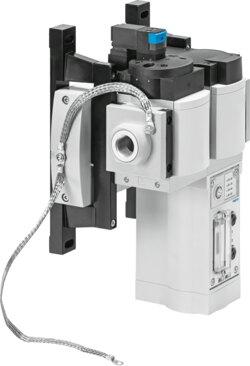

Reference imageConfirm configuration by manufacturer part number.
Festo
3990296
Energy efficiency module MSE6-E2M-5000-FB36-AGD
The Festo 3990296 is an industrial component of series MSE in size 6 featuring a 2/2-way, monostable, open valve function with a mechanical spring reset. It operates with a 100% duty cycle on compressed air conforming to ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.35 MPa to 1 MPa (3.5 bar to 10 bar, 50.75 psi to 145 psi) and a pressure regulation range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar, 36.25 psi to 145 psi). Certified with the RCM compliance mark and KC-EMV, the unit carries CE and UKCA markings per EMC and RoHS directives, accepts a max load current consumption of 100 mA and logic max current consumption of 300 mA, and requires a horizontal mounting position within +/- 5 degrees without oil lubrication. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3990296
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3990296.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MSE
- Mounting position
- Horizontal +/- 5°
- Valve function
- 2/2-way, monostable, open
- Reset method
- Mechanical spring
- Operating pressure
- 0.35 MPa...1 MPa | 3.5 bar...10 bar | 50.75 psi...145 psi
- Pressure regulation range MPa
- 0.25 MPa...1 MPa
- Pressure regulation range
- 2.5 bar...10 bar
- Pressure regulation range psi
- 36.25 psi...145 psi
- Max. pressure hysteresis
- 0.03 MPa | 0.3 bar | 4.35 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Duty cycle
- 100%
- Max. load current consumption
- 100 mA
- Logic max. current consumption
- 300 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- 0 °C...50 °C
- Degree of protection
- IP65 | With plug socket
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 3300 g
