Festo
3992150

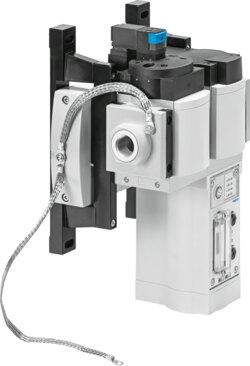

Energy efficiency module MSE6-E2M-5000-FB37-AGD
The Festo 3992150 is a Size 6 industrial component from the MSE series featuring a 2/2-way monostable open valve function with a mechanical spring reset and a normal nominal flow rate of 4500 l/min. Operating at an input pressure range of 0.35 MPa to 1 MPa and providing a regulated pressure range of 0.25 MPa to 1 MPa with a maximum pressure hysteresis of 0.03 MPa, this unit supports a 100% duty cycle, a 100 mA max load current consumption, and a 300 mA logic max current consumption. It is designed for horizontal mounting within +/- 5 degrees using compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication, and carries RCM compliance, KC-EMV, CE, and UKCA markings per EU and UK EMC and RoHS directives. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 3992150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 3992150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MSE
- Mounting position
- Horizontal +/- 5°
- Valve function
- 2/2-way, monostable, open
- Reset method
- Mechanical spring
- Operating pressure
- 0.35 MPa...1 MPa | 3.5 bar...10 bar | 50.75 psi...145 psi
- Pressure regulation range MPa
- 0.25 MPa...1 MPa
- Pressure regulation range
- 2.5 bar...10 bar
- Pressure regulation range psi
- 36.25 psi...145 psi
- Max. pressure hysteresis
- 0.03 MPa | 0.3 bar | 4.35 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Duty cycle
- 100%
- Max. load current consumption
- 100 mA
- Logic max. current consumption
- 300 mA
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Temperature of medium
- 0 °C...50 °C
- Degree of protection
- IP65 | With plug socket
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 3300 g
