Festo
4046082

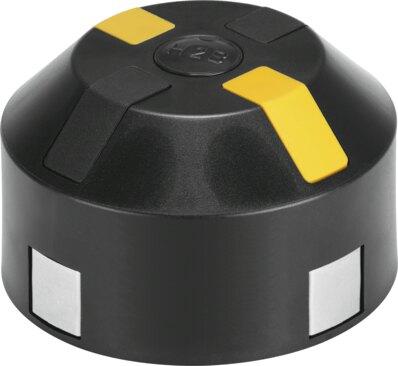

Position indicator SASF-S2-B-F-A34
The Festo part number 4046082 is an industrial component featuring a Ø 65 x 40 dimensions profile and a weight of 55 g with a black housing color. Its construction incorporates a PA spacer element, a housing made of PA, PP, and high-alloy stainless steel, and high-alloy stainless steel screws, while maintaining RoHS compliance and VDMA24364 Zone III LABS conformity. This unit operates within an ambient temperature range of -25 °C to 70 °C, supports a swivel angle adjustment range of 0 deg to 90 deg, and mounts according to VDI/VDE 3845 standards. Furthermore, it meets EN 60068-2-6 and FN 942017-4 severity level 2 vibration resistance alongside EN 60068-2-27 and FN 942017-5 severity level 2 shock resistance for transport applications. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4046082
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4046082.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...90 deg
- Dimensions W x L x H
- Ø 65 x 40
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 55 g
- Type of mounting
- As per VDI/VDE 3845
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Spacer element material
- PA
- Housing material
- PA | PP | high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
