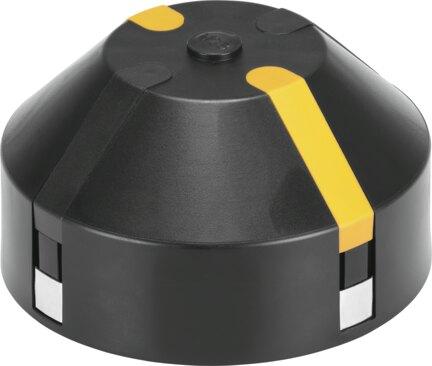

Reference imageConfirm configuration by manufacturer part number.
Festo
4077125
Position indicator SASF-S2-B-F-A56
The Festo part number 4077125 is an industrial component featuring a black housing composed of PA, PP, and high-alloy stainless steel with a PA spacer element and high-alloy stainless steel screws. This RoHS-compliant unit weighs 140 g, measures Ø 115 x 62, and operates within an ambient temperature range of -25 °C to 70 °C with a 0 deg to 90 deg swivel angle adjustment range. Mounting conforms to VDI/VDE 3845, while resistance capabilities include severity level 2 transport vibration per FN 942017-4 and EN 60068-2-6, severity level 2 shock per FN 942017-5 and EN 60068-2-27, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4077125
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4077125.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...90 deg
- Dimensions W x L x H
- Ø 115 x 62
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 140 g
- Type of mounting
- As per VDI/VDE 3845
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Spacer element material
- PA
- Housing material
- PA | PP | high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4077125. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
