Festo
4080499
Bus module CPX-E-EP
Festo Bus module CPX-E-EP, part number 4080499, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 4080499
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4080499.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Dimensions W x L x H
- 42.2 mm x 76.5 mm x 125.8 mm
- Width dimension
- 18.9 mm
- Type of mounting
- With DIN rail
- Max. number of modules
- 10
- Product weight
- 145 g
- Mounting position
- Vertical | Horizontal
- Ambient temperature
- -5 °C...50 °C
- Note on ambient temperature
- -5 - 60 °C for vertical installation
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP20
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- Protection against direct and indirect contact
- PELV
- LABS (PWIS) conformity
- VDMA24364 Zone III
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Note on materials
- RoHS compliant
- Housing material
- PA

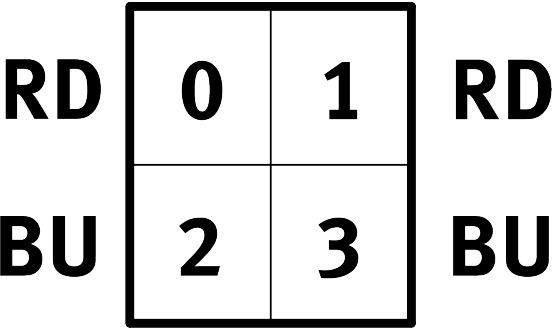

- Diagnostics via LED
- Force mode | Modify | Module status | Network status | Power supply for electronics/sensors | Load power supply
