Festo
4087

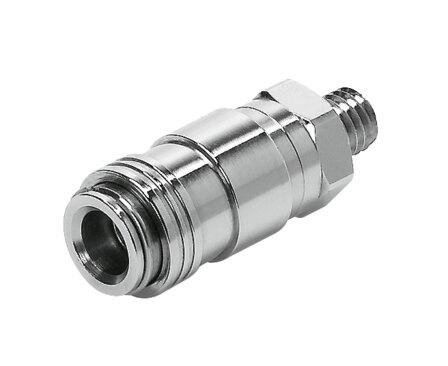

Quick coupling socket KD2-M5-A
The Festo part number 4087 is an industrial component featuring an M5 external thread pneumatic connection 1, a nominal width of 2.4 mm, and a product weight of 10 g. Constructed with a nickel-plated brass housing and threaded coupling, NBR seals, and high-alloy stainless steel components, it operates within a pressure range of -0.095 MPa to 1.2 MPa and an ambient temperature range of -10 °C to 60 °C. This component supports compressed air media as per ISO 8573-1:2010 [7:-:-] with lubricated operation possible, delivering a normal nominal flow rate of 83 l/min to 131 l/min and an ISO 8778 standardized nominal flow rate of 90 l/min to 142 l/min at a nominal tightening torque of 0.85 Nm with a ±15% tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4087
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4087.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 83 l/min...131 l/min
- Nominal ow rate standardized according to ISO 8778
- 90 l/min...142 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 0.85 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 10 g
- Pneumatic connection 1
- External thread M5
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- NBR | high-alloy stainless steel
- Threaded coupling material
- Brass, nickel-plated
- Ball material
- high-alloy stainless steel
- Circlip material
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- Brass, nickel-plated
