4090

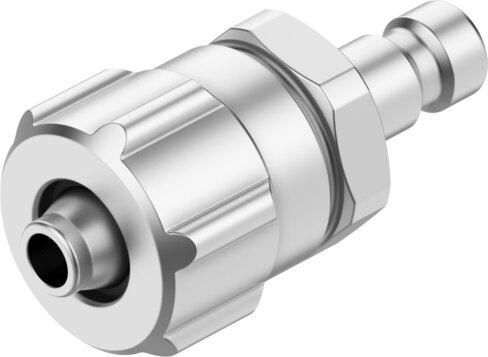

Name: Festo 4090 Quick coupling plug KS2-CK-4
Brand: Festo

Quick coupling plug KS2-CK-4

The Festo part number 4090 is an 11 g industrial component featuring a 2.7 mm nominal width and a normal nominal flow rate of 86 l/min to 129 l/min according to DIN 1343, alongside an ISO 8778 standardized nominal flow rate ranging from 93.2 l/min to 139.8 l/min. Designed for compressed air operating media compliant with ISO 8573-1:2010 [7:-:-], this unit operates within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and an ambient temperature span of -10 °C to 60 °C. It is equipped with pneumatic connection 1 for 6 mm outside diameter pneumatic tubing or a barbed fitting with a 4 mm inside diameter and an anodized wrought aluminum alloy union nut, utilizing RoHS-compliant nickel-plated brass materials with a CRC 1 low corrosion stress rating and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4090
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4090.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 2.7 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 86 l/min...129 l/min
Nominal ow rate standardized according to ISO 8778: 93.2 l/min...139.8 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 11 g
Pneumatic connection 1: For pneumatic tubing outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut
Material of union nut: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Information on materials: Brass, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 4090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
