Festo
4100

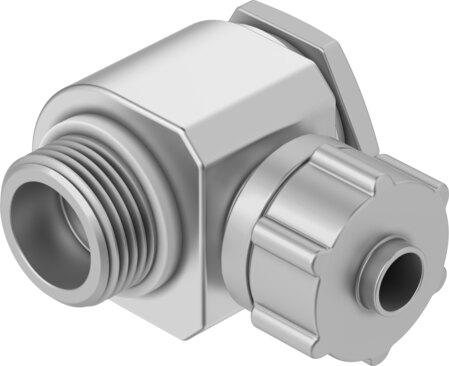

Elbow quick connector LCK-1/2-PK-13
The Festo part number 4100 is an L-shaped industrial component featuring an 11.7 mm nominal width, an external thread G1/2 pneumatic connection 1, and a pneumatic connection 2 for a 13 mm inside diameter barbed fitting with a nut. It operates within a temperature range of -10 °C to 60 °C at a pressure of -0.095 MPa to 1 MPa, utilizing compressed air as per ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Constructed with a die-cast zinc swivel joint, PA-reinforced and TPE-U(PU) sealing ring, and anodized wrought aluminum alloy union nut and hollow bolt, this RoHS compliant part has a nominal tightening torque of 14 Nm with a ±20% tolerance and CRC 1 low corrosion stress resistance. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11.7 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 14 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for barbed tting, inside diameter 13 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- PA-reinforced | TPE-U(PU)
- Hollow bolt material
- Wrought aluminum alloy, anodized
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
