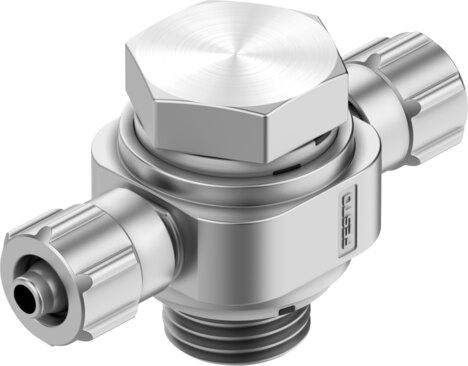

Reference imageConfirm configuration by manufacturer part number.
Festo
4137
T quick connector TCK-1/8-PK-3
The Festo 4137 is a T-shaped industrial component featuring a 2 mm nominal width, a G1/8 external thread for pneumatic connection 1, and a connection for a 4 mm outside diameter pneumatic tubing or a 3 mm inside diameter barbed fitting with a nut for pneumatic connection 2. Constructed with a die-cast zinc housing, anodized wrought aluminum alloy hollow bolts and union nut, and PA-reinforced and TPE-U(PU) sealing rings, this unit operates across a pressure range of -0.095 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:-:-]. It is rated for a nominal tightening torque of 3.5 Nm with a ±20% tolerance, an ambient temperature range of -10 °C to 60 °C, a CRC of 1, and VDMA24364-B1/B2-L LABS conformity while supporting lubricated operation in any mounting position. Submit part number 4137, required pack quantities of 10, and application requirements to receive an exact quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4137
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4137.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 3.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection 1
- External thread G1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm | for barbed tting, inside diameter 3 mm, with nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Sealing ring material
- PA-reinforced | TPE-U(PU)
- Housing material
- Die-cast zinc
- Hollow bolt material
- Wrought aluminum alloy, anodized
- Swivel joint material
- Die-cast zinc
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4137. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
