Name: Festo 4149946 Guided drive DFM-6-15-P-A-GF
Brand: Festo

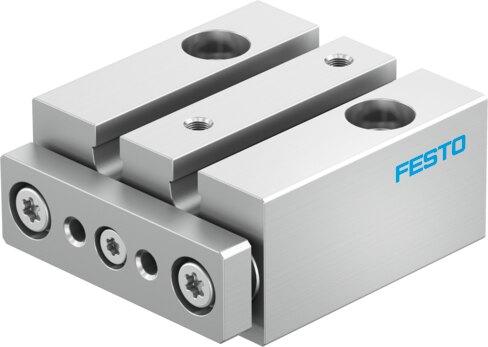

Guided drive DFM-6-15-P-A-GF

The Festo part number 4149946 is an industrial guide drive unit featuring a 6 mm piston diameter, a 15 mm stroke, and a yoke drive operating mode with elastic cushioning rings or pads at both ends. Designed with a plain-bearing guide, it supports a maximum speed of 1.3 m/s, an operating pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), and functions in any mounting position with double-acting operation using compressed air as per ISO 8573-1:2010 [7:4:4]. This component achieves ISO 14644-1 class 6 cleanroom suitability and a 1 - low corrosion stress rating, accommodating an ambient temperature range of -10 °C to 60 °C with position sensing via proximity switch. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 4149946
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 4149946.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 10 mm
Stroke: 15 mm
Piston diameter: 6 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Max. speed: 1.3 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.012 Nm
Max. permissible torque load Mx as a function of the stroke: 0.007 Nm
Max. payload as a function of the stroke at dened distance xs: 0.65 N
Theoretical force at 6 bar, retracting: 13 N
Theoretical force at 6 bar, advancing: 17 N
Torsional backlash: 0.1 deg
Moving mass: 11.5 g
Product weight: 39.5 g
Pneumatic connection: M3
Note on materials: RoHS compliant
Cover material: high-alloy stainless steel
Seals material: NBR
Material of dynamic seals: HNBR
