Festo
4154768

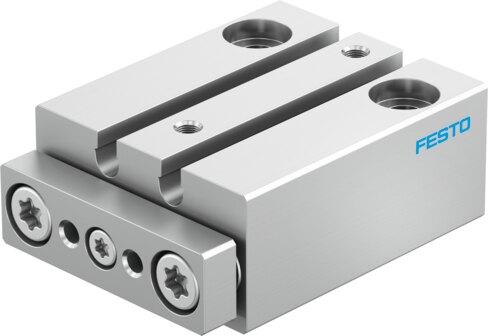

Guided drive DFM-10-5-P-A-GF
The Festo 4154768 is a double-acting industrial guide component featuring a 10 mm piston diameter, a 5 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates on compressed air within a pressure range of 0.15 MPa to 0.8 MPa at a maximum speed of 1.7 m/s, utilizing elastic cushioning rings at both ends and position sensing via proximity switch. The unit accommodates an ambient temperature range of -10 °C to 60 °C, a 10 mm distance of the centre of gravity of the payload to the yoke plate xs, and a max permissible torque load Mx of 0.057 Nm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4154768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4154768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 10 mm
- Stroke
- 5 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 1.7 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.035 Nm
- Max. permissible torque load Mx as a function of the stroke
- 0.057 Nm
- Max. payload as a function of the stroke at dened distance xs
- 3.7 N
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Torsional backlash
- 0.1 deg
- Moving mass
- 10 g
- Product weight
- 38 g
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Seals material
- NBR
- Material of dynamic seals
- HNBR
