Festo
4154769

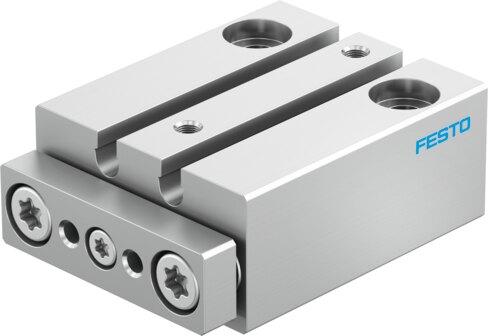

Guided drive DFM-10-10-P-A-GF
This Festo industrial component features a 10 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with elastic cushioning rings or pads at both ends. Designed with a plain-bearing guide and position sensing via proximity switch, the double-acting unit operates within a pressure range of 0.15 MPa to 0.8 MPa and achieves a maximum speed of 1.7 m/s using compressed air. The structural design maintains a 10 mm distance from the center of gravity of the payload to the yoke plate and accommodates an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4154769
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4154769.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 10 mm
- Stroke
- 10 mm
- Piston diameter
- 10 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Max. speed
- 1.7 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.035 Nm
- Max. permissible torque load Mx as a function of the stroke
- 0.046 Nm
- Max. payload as a function of the stroke at dened distance xs
- 3 N
- Theoretical force at 6 bar, retracting
- 40 N
- Theoretical force at 6 bar, advancing
- 47 N
- Torsional backlash
- 0.1 deg
- Moving mass
- 13 g
- Product weight
- 45.5 g
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Seals material
- NBR
- Material of dynamic seals
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4154769. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
