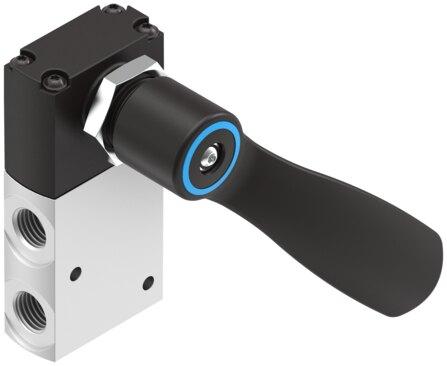

Reference imageConfirm configuration by manufacturer part number.
Festo
4165854
Hand lever valve VHEF-HST-M32-M-G14
The Festo 4165854 is a 20 mm wide industrial component featuring a direct, manually actuated 3/2 open/closed monostable valve function with a plate seat structural design and mechanical spring reset. It delivers a normal nominal flow rate of 870 l/min through G1/4 pneumatic working ports across an operating pressure range of -0.95 bar to 10 bar (-0.095 MPa to 1 MPa) with adjustable exhaust air function, zero overlap lap, and a soft sealing principle. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection, this reversible component operates with ISO 8573-1:2010 [7:-:-] compressed air and supports oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4165854
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4165854.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2, open/closed, monostable
- Actuation type
- Manual
- Width
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 870 l/min
- Pneumatic working port
- G1/4
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Nominal width
- 6 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Zero overlap
- Max. switching frequency
- 0.5 Hz
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Actuating torque
- 0.6 Nm
- Max. force on actuator
- 200 N
- Max. transverse load on actuator
- 200 N
- Product weight
- 230 g
- Type of mounting
- Alternatively:
