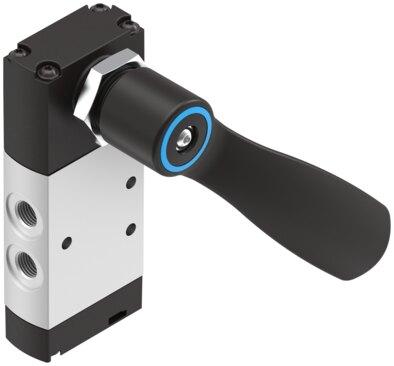

Reference imageConfirm configuration by manufacturer part number.
Festo
4165857
Hand lever valve VHEF-HS-P53C-M-G18
The Festo 4165857 is a 20 mm wide piston gate valve featuring a 5/3-way closed manual actuation type with mechanical spring reset and a nominal width of 5.2 mm. This component delivers a normal nominal flow rate of 700 l/min through G1/8 pneumatic working ports across an operating pressure range of -0.95 bar to 10 bar. Designed with adjustable exhaust air function, soft sealing principle, reversible flow direction, and positive overlap lap, it operates directly with compressed air per ISO 8573-1:2010 [7:-:-] and maintains ATEX certification for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4165857
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4165857.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Manual
- Width
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 5.2 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Max. switching frequency
- 0.5 Hz
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Actuating torque
- 0.7 Nm
- Max. force on actuator
- 200 N
- Max. transverse load on actuator
- 200 N
- Product weight
- 265 g
- Type of mounting
- Alternatively:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4165857. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
