Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

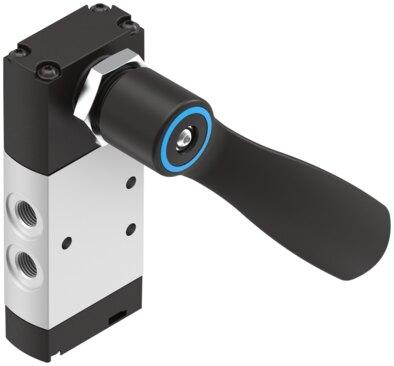

Reference imageConfirm configuration by manufacturer part number.
Festo
4165859
Hand lever valve VHEF-HS-P53E-M-G18
The Festo 4165859 is a 20 mm wide piston gate valve featuring a 5/3 exhausted valve function and manual actuation with a mechanical spring reset. This direct-controlled component delivers a normal nominal flow rate of 530 l/min through G1/8 pneumatic working ports across an operating pressure range of -0.95 bar to 10 bar. Designed with an adjustable exhaust air function, soft sealing principle, and positive overlap lap, it supports a reversible flow direction and a maximum switching frequency of 0.5 Hz for compressed air media conforming to ISO 8573-1:2010 [7:-:-]. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention and protection, this unit features any mounting position and permits oil lubrication operation. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 4165859
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 4165859.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Manual
- Width
- 20 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 530 l/min
- Pneumatic working port
- G1/8
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Nominal width
- 5.2 mm
- Exhaust air function
- Adjustable
- Application note
- Only operate by hand
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Flow direction
- Reversible
- Lap
- Positive overlap
- Max. switching frequency
- 0.5 Hz
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Actuating torque
- 0.7 Nm
- Max. force on actuator
- 200 N
- Max. transverse load on actuator
- 200 N
- Product weight
- 265 g
- Type of mounting
- Alternatively:
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 4165859. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
